Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
189-500 CADR - 5-10 fans
Fanless Kits
Fanless Kits
Fanless Kits

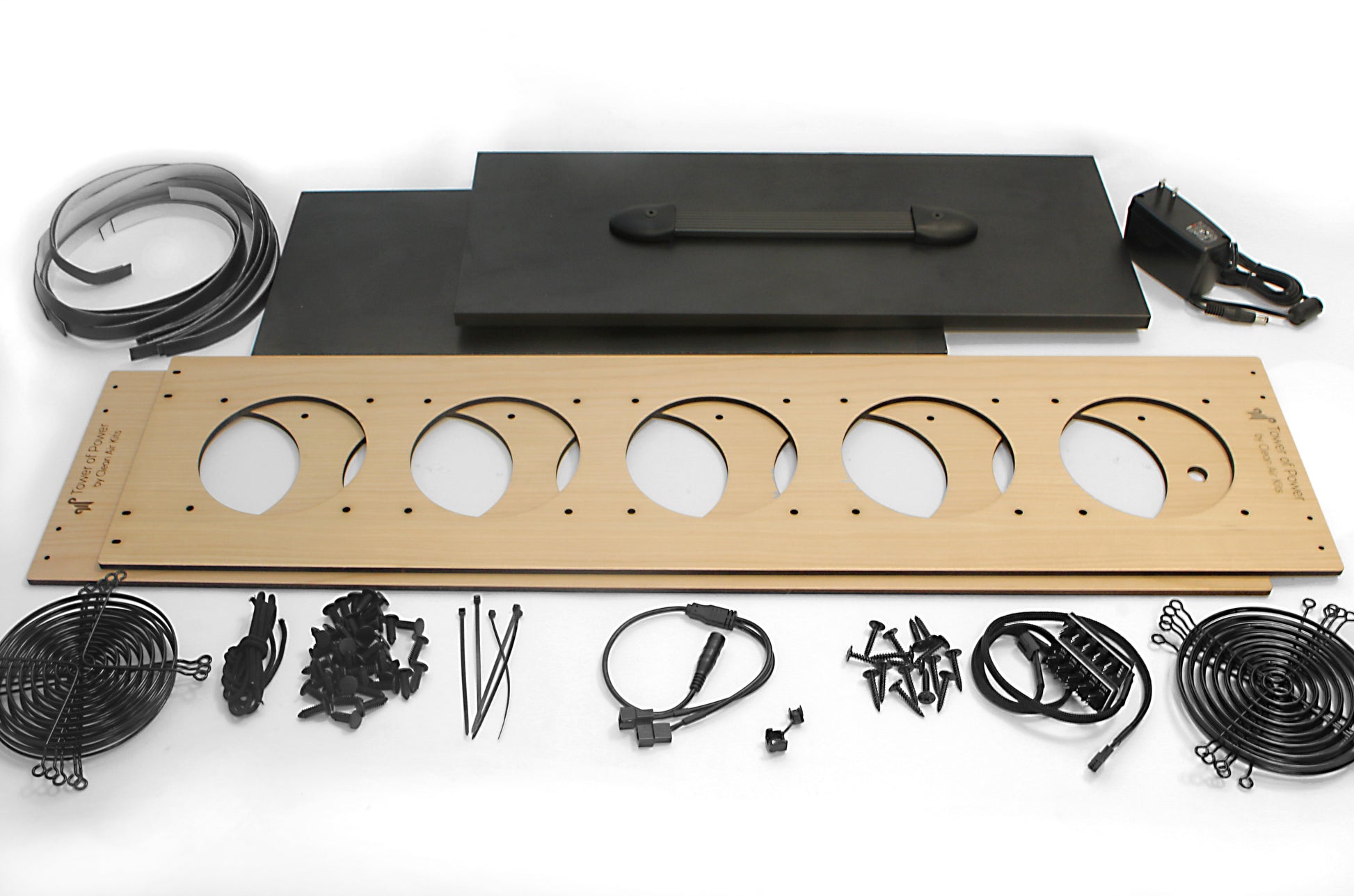

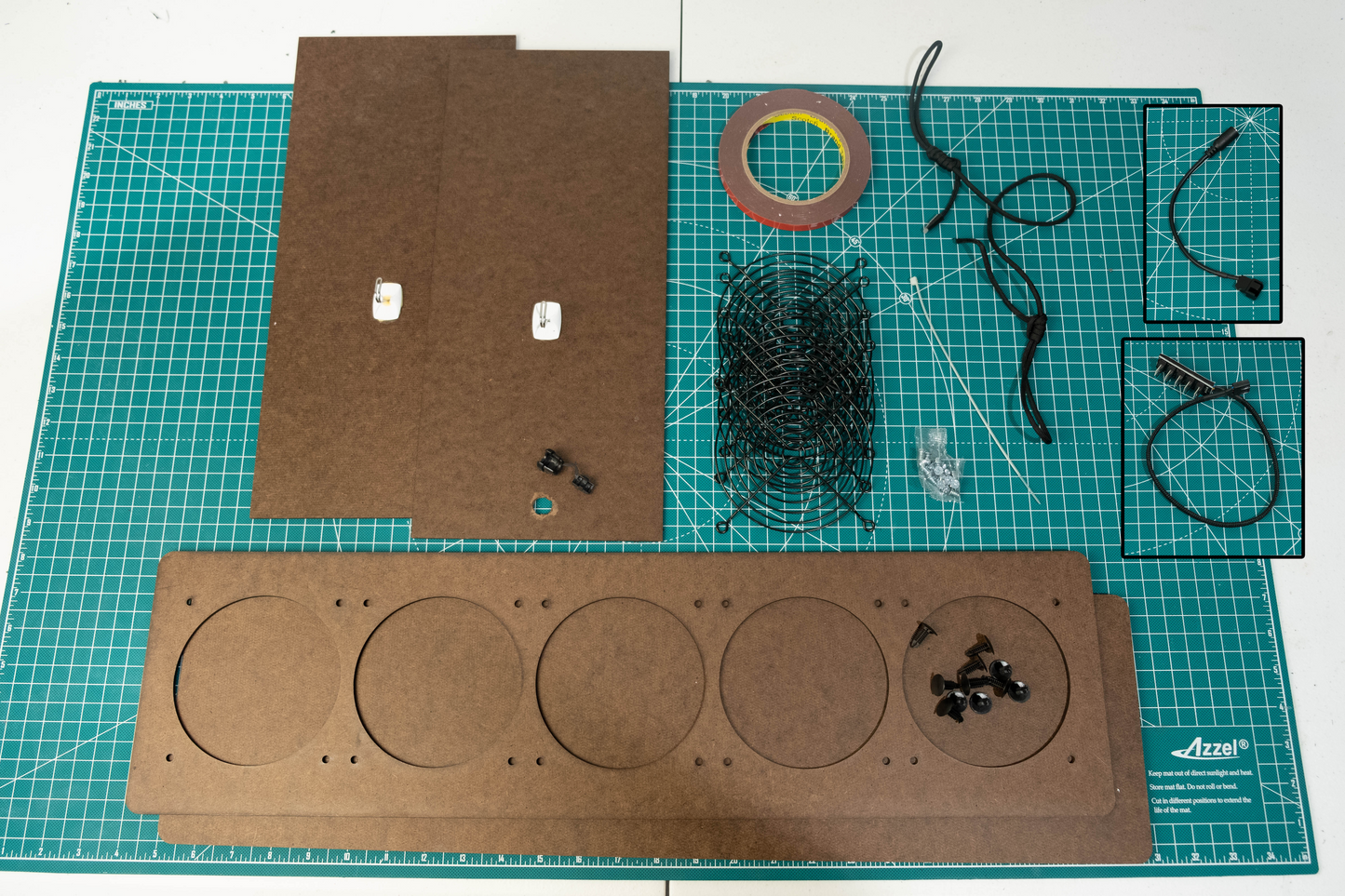

Buy our panel kits without the fans, for those who have their own preferred brand of PC fan. Comes with wiring harnesses, 12V wall plug and all other hardware for chosen kit. Fans and filters sold separately.
Luggable hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
-
Variant5 Arctic P12
-
Filters2 Filtrete 16x25 MPR1900+
-
CADR by Intertek (cfm)DUST 189
-
5 ACH Coverage285 sq ft
-
Power8.3 W
-
Sound Pressure @1m33.7 dBA
-
Dimensions16x25x7"
-
Variant5 SickleFlow
-
Filters2 Filtrete 16x25 MPR1900+
-
CADR by Intertek (cfm)SMOKE 170 / DUST 218 / POLLEN 236
-
5 ACH Coverage327 sq ft
-
Power7.6 W
-
Sound Pressure @1m34.8 dBA
-
Dimensions16x25x7"
-

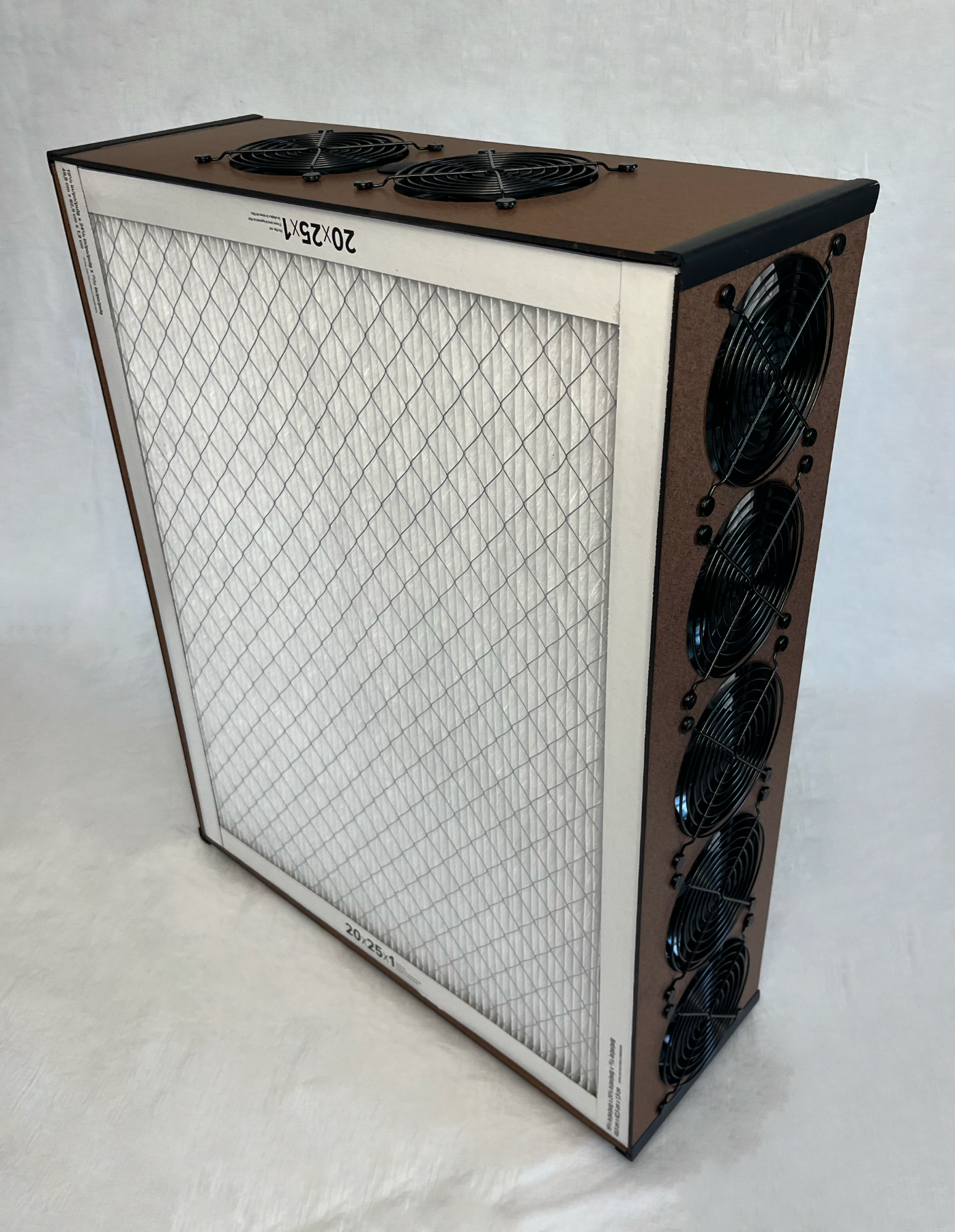

VariantXL - 7 SickleFlow
-
Filters2 Filtrete 20x25 MPR1900+
-
CADR by Intertek (cfm)SMOKE 259 / DUST 323 / POLLEN 370
-
5 ACH Coverage485 sq ft
-
Power10.8 W
-
Sound Pressure @1m37.3 dBA
-
Dimensions20x25x7"

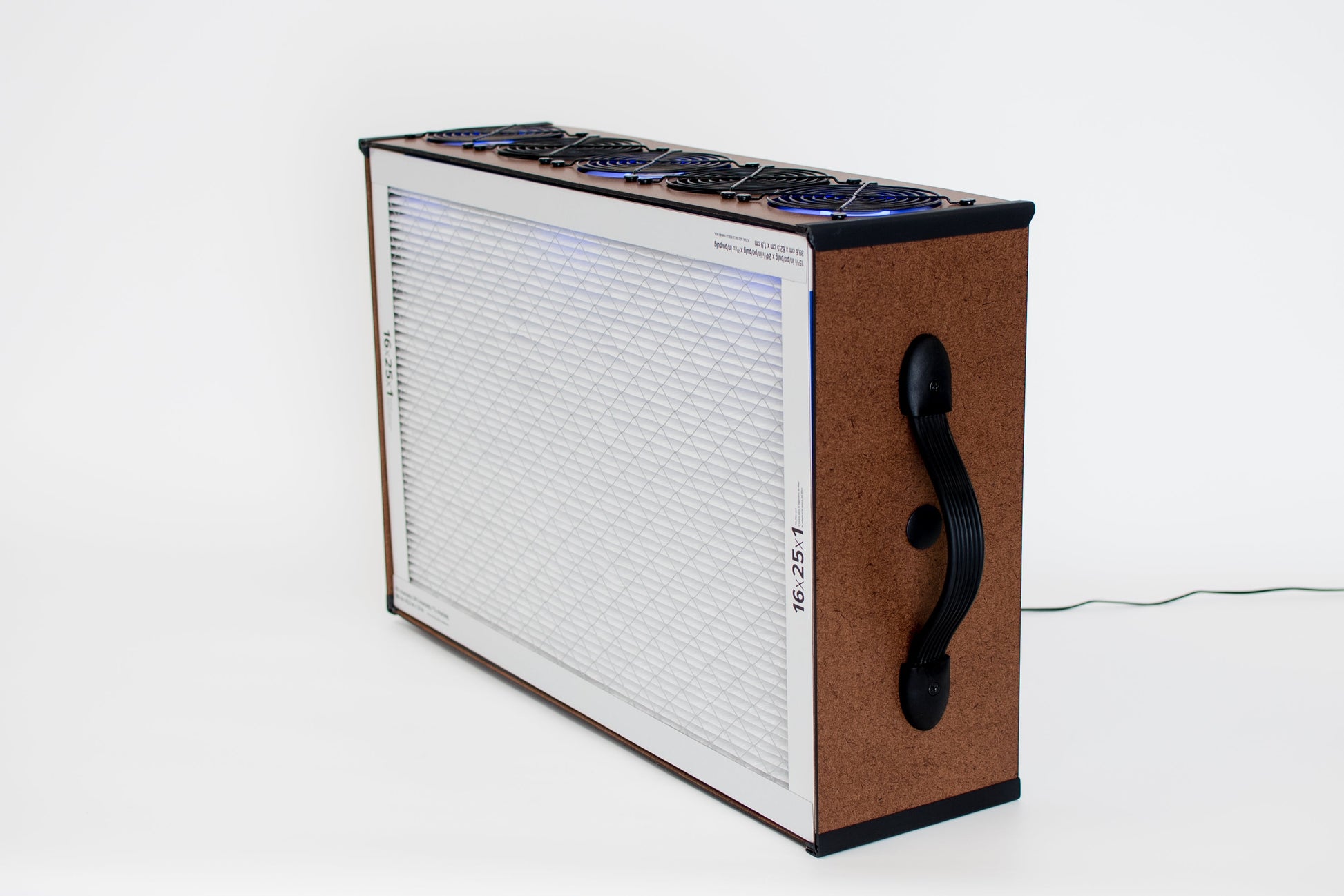

- Integrated Suitcase Handle
- Stands tall or wide against a wall
- Lightweight: 6-8 lbs
- Internal pre-tensioner cords for easy slide-out filter changes and snug fit.
- UL-listed 120V AC to 12V 2A DC wall plug w/ 5.5x2.1mm barrel socket
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on Full
Clean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed Design
Speed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy Efficiency
Decades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
Products are returnable within 30 days for a full refund less $44 filter hygiene cost and shipping. Exchanges to other models with same filter sizes are free except for shipping, otherwise $44 for new filters.
All products ship from Missouri via UPS according to an average rate per product (until backend supports live rates accurately). Due to high demand and customizations products may take up to two weeks to ship.
-
"Standalone HEPAs or Corsi-Rosenthal boxes are a quick way to lower the risk of inhaling SARS-CoV-2 virus. Filtering the virus out of the air reduces the chance of inhaling it---simple logic. The other option is to filter/trap it with a mask before it is released or inhaled."
Kim Prather, PhD
Distinguished Professor, UCSD
Director NSF Center for Aerosol Impacts
on Chemistry of the Environment -
3M tested the Corsi-Rosenthal Box with the same rigor it applies to its Filtrete brand of products and found the C-R Box “performs exceptionally well in its ability to capture unwanted airborne particles, including viruses," says Kelsey Hei, a 3M application engineer.
Fortune: A DIY air purifier that costs
under $100 to make is taking Americas
classrooms by storm -
“A C-R box uses MERV-13 filters, which can only remove 60% to 80% of those particles, (but) the fan on the C-R box is much bigger and can clean more air,” says Joseph Fox, chair of the indoor air quality advisory group with the Ontario Society of Professional Engineers, who works with schools on HVAC issues. “All you care about in the end is the total rate at which the air is cleaned. So, what the C-R box lacks in efficiency, it makes up for in airflow.”
Fortune: A DIY air purifier that costs
under $100 to make is taking Americas
classrooms by storm -
Many exciting innovations have emerged in the last two years alone. Once it is clearly acknowledged the virus is airborne, it becomes a very fixable problem. People will shift from cleaning surfaces to cleaning indoor air where we spend 90% of our time. This has huge positive health ramifications beyond COVID-19 by reducing the spread of all airborne pathogens, pollutants including wildfire smoke, and other asthma-inducing aerosols.
Kim Prather, PhD
Distinguished Professor, UCSD
Director NSF Center for Aerosol Impacts
on Chemistry of the Environment -
To lower inhalation dose of virus-laden respiratory aerosol particles (a major key to suppressing the mortaility and mobidity associated with COVID-19) the three Rs must be advanced from where they are now. Remove, Reduce, Remediate.
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis -
Appropriate combos of Remove, Reduce, & Remediate are what many of us called layered risk reduction (or layered inhalation dose reduction) back in Spring 2020. Not rocket science. For those who still care about reducing the spread of COVID-19, it all still applies, folks.
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis -
"I am thrilled to be part of something that is so accessible to people around the world, helping to protect children in school and families in their homes, all the while inspiring children about the power of STEM."
Richard Corsi, PhD PE (Texas)
Dean of Engineering, UC Davis
