Large PC fan CR Boxes can save a couple hundred dollars per year in electricity and filter replacement cost compared to equivalent large HEPAs
-
765 sqft - 11 people

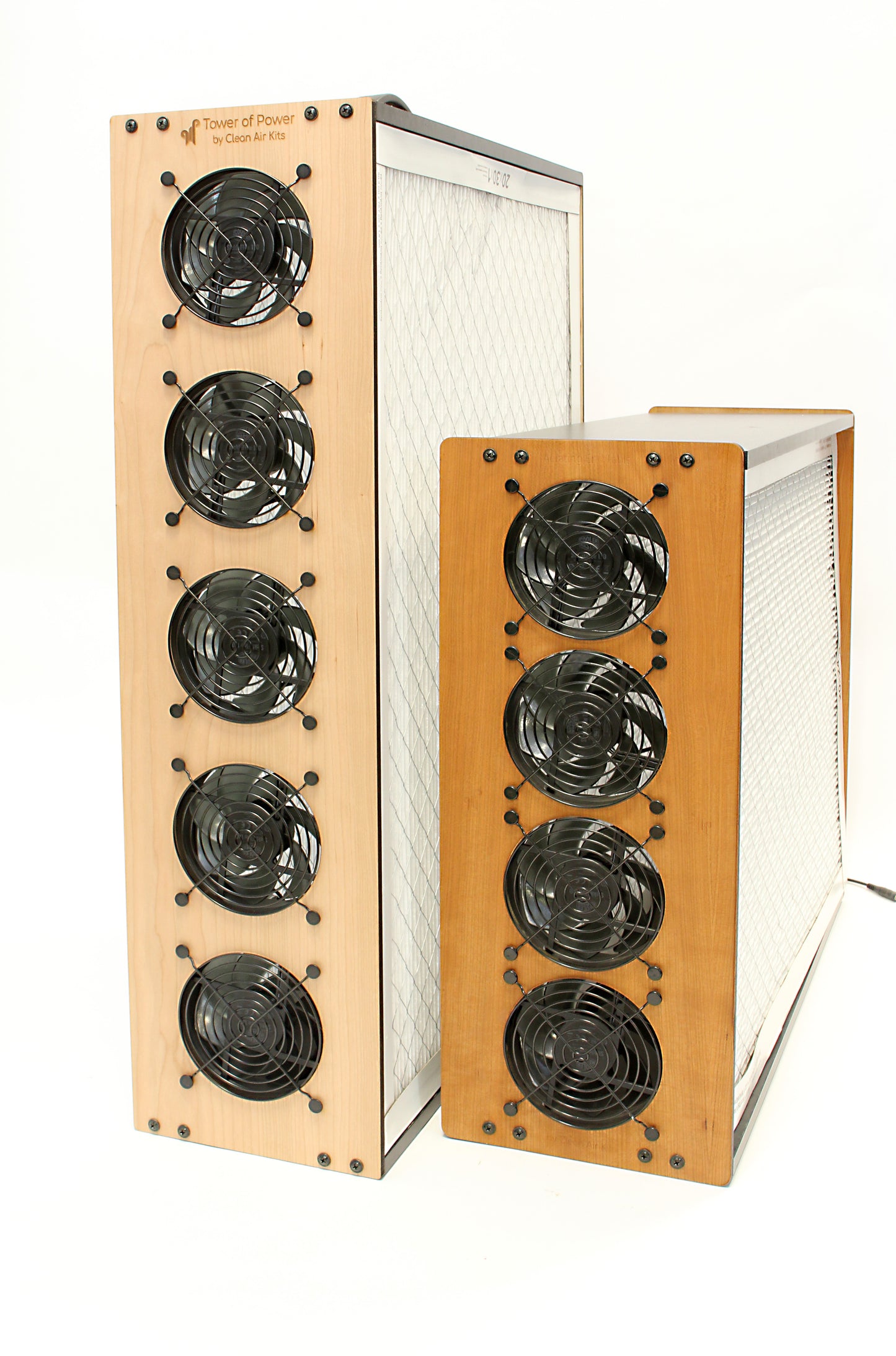

Tower of Power
Tower of Power
Tower of Power

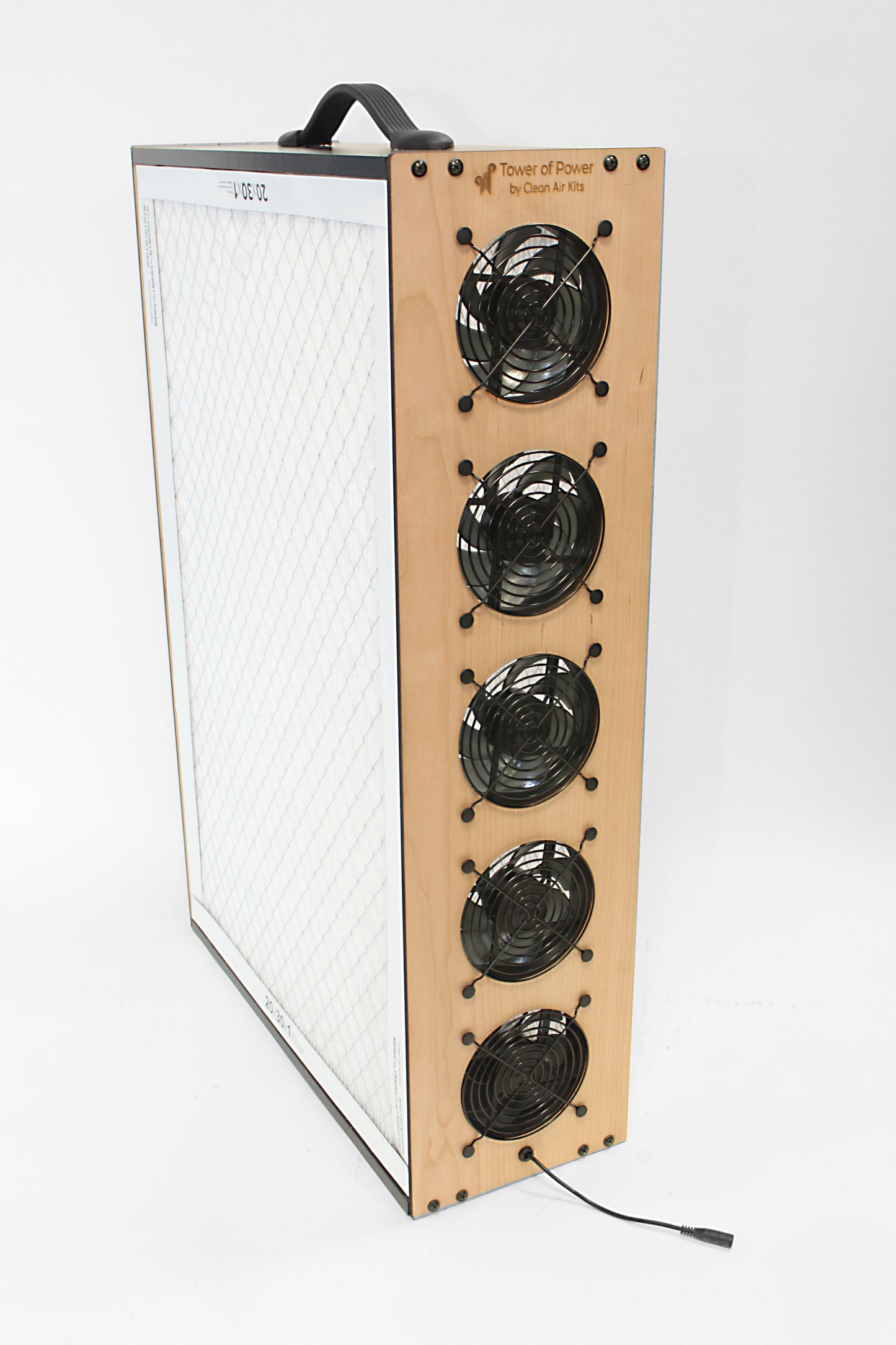

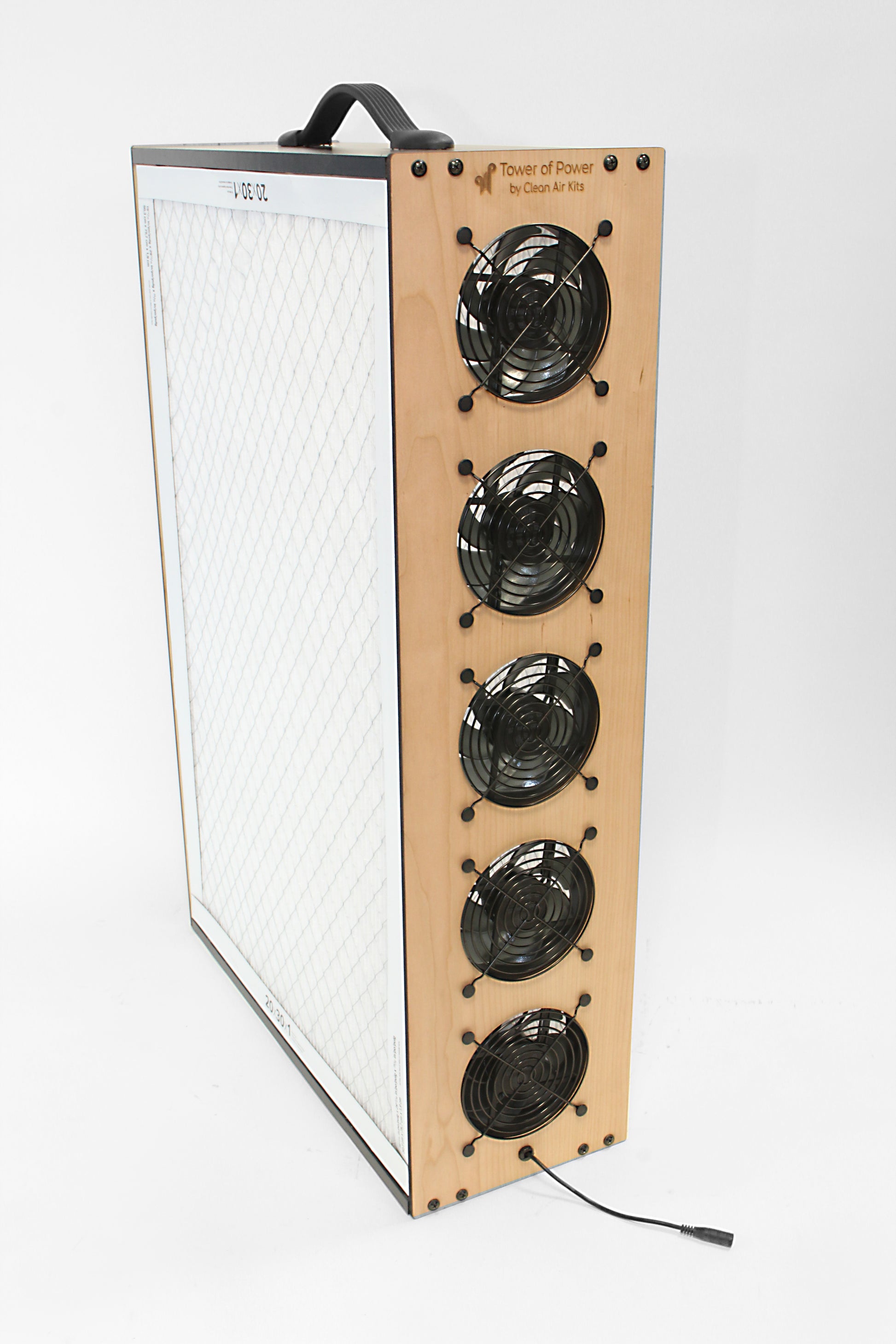

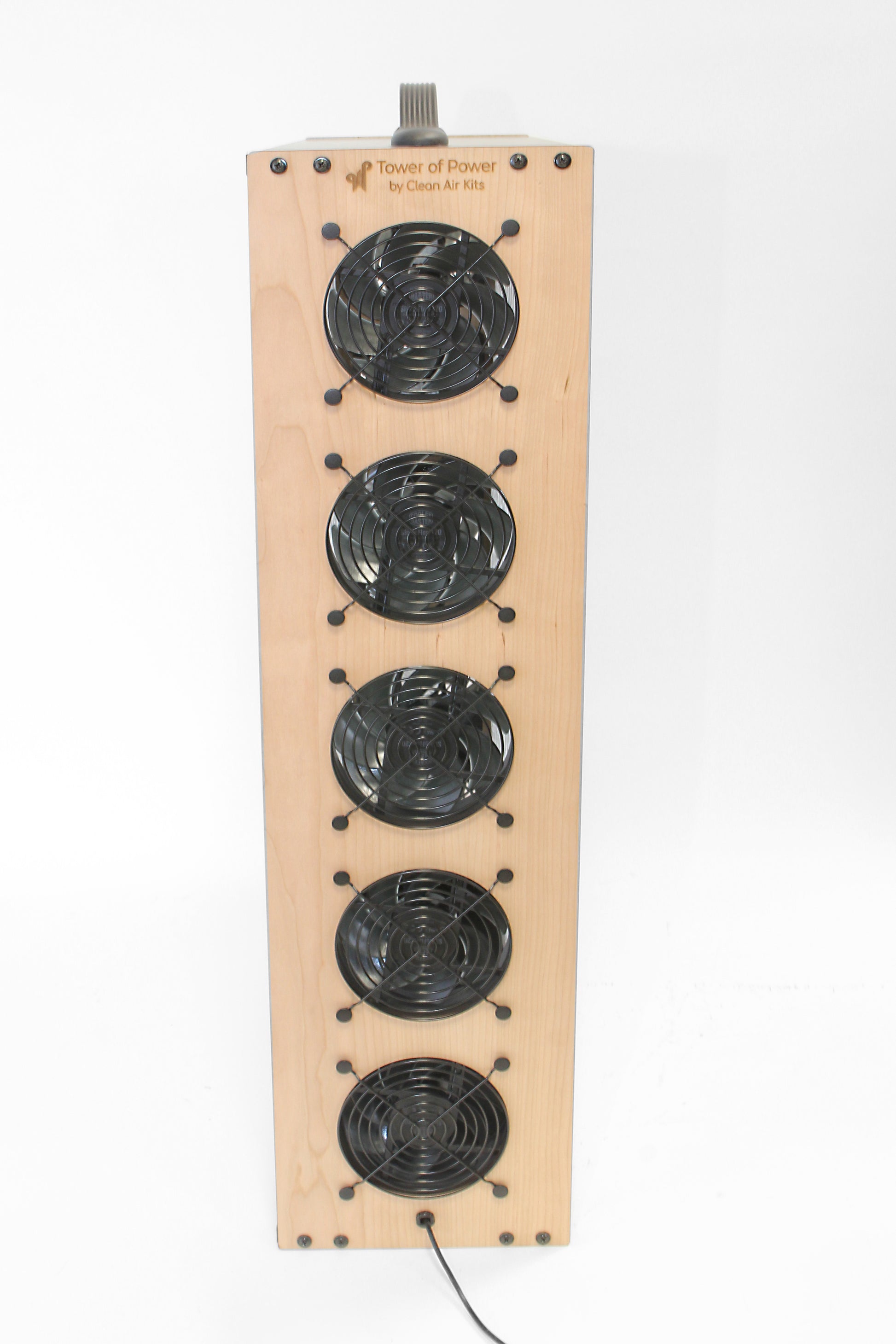

Enjoy beautiful Cherry fan panels on this filtering furniture piece. You can deepen the Cherry grain with a natural oil like Tung Oil. Sturdy 1/2" black melamine bridge the laser-etched fan panels. Friction-fit foam seals for slip-in/out filter changes.

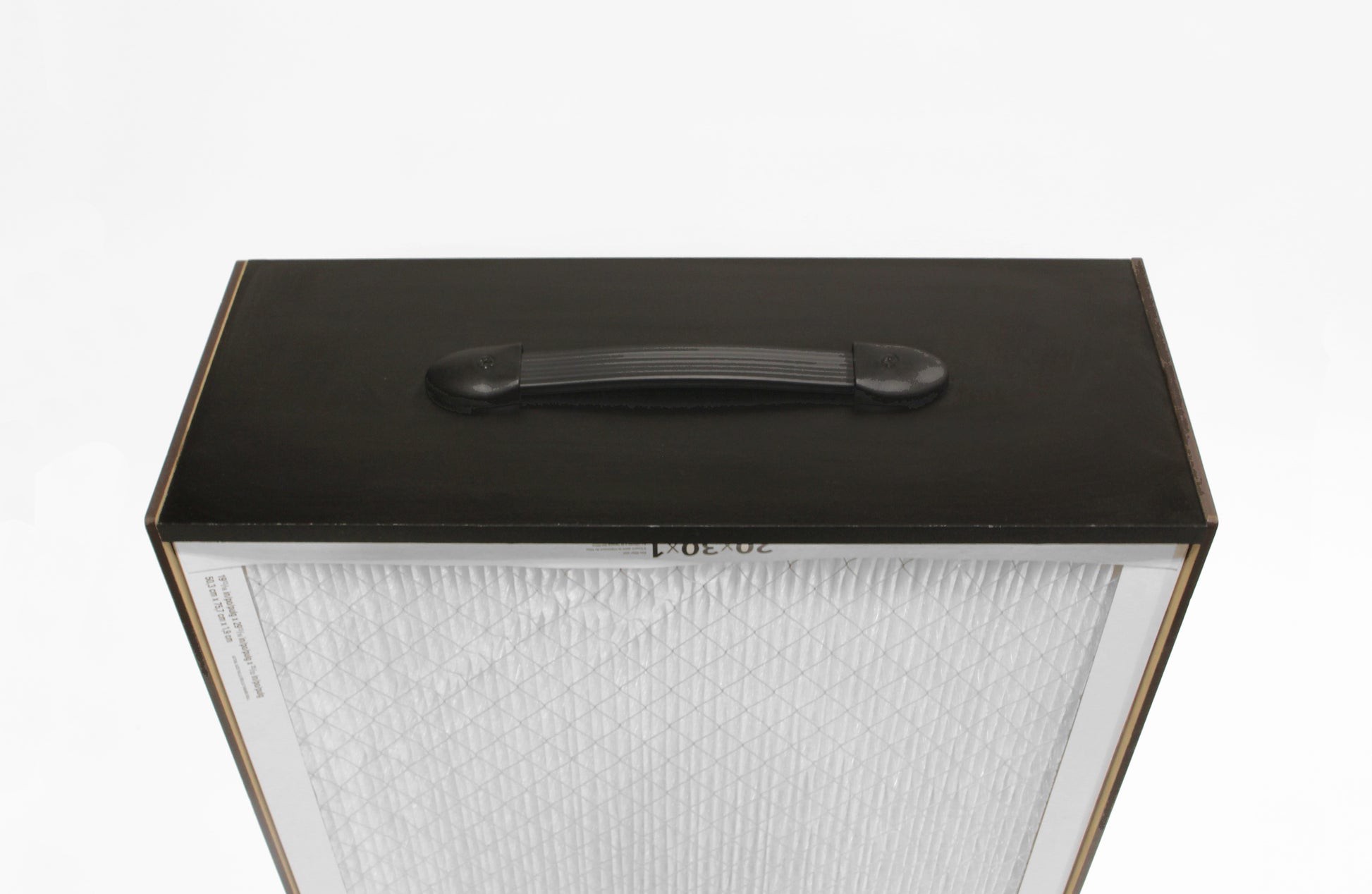

Tower of Power boasts six 140mm Arctic P14 and four 120mm SickleFlow pressure fans. This modest monolith can cover large open rooms with 10-12 guests according to ASHRAE 241 recommendation of 40 cfm/occupant. The Tower of Power is amazingly quiet for such high capacity: 45 dB. Attractive handle included.

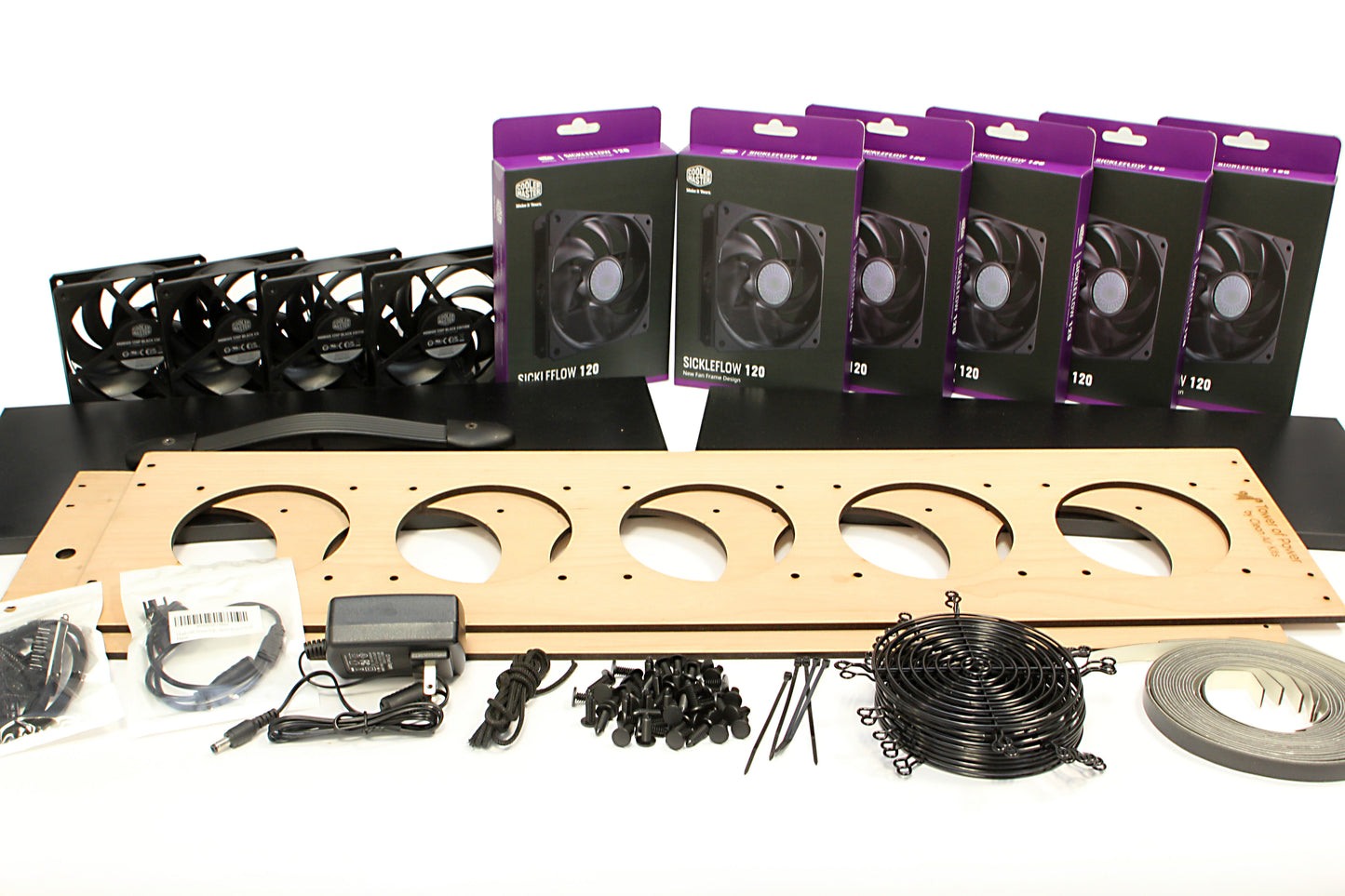

To minimize shipping damage & costs, we only ship our towers & tables as unassembled flat packs at this time, filters sold separately. Assembly is straightforward with 2 fan panels screwing into the 2 melamine bridges (video here). Allow 30 minutes for assembly. If concerned, consider asking a handy friend to help with assembly -- they may enjoy it!

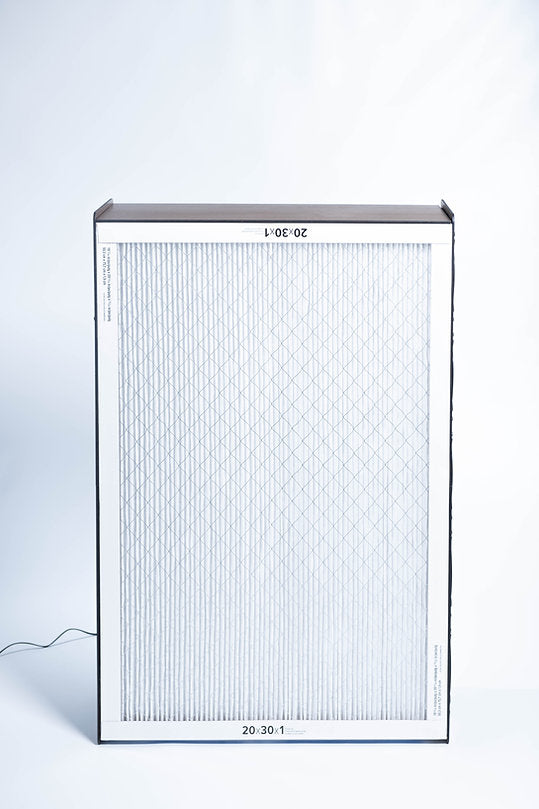

3M Filtrete MPR1900/2200 20x30 can be purchased separately in cheap 4-packs from Costco or Lowes for a 1-2 year filter supply. Outside the US try Digi-Key.
NOTE: some regions may still have a slightly larger, older Filtrete size that says 19 13/16"x29 13/16" Actual Size on side of filter. These must be scrunched to fit. Try to find newer stock with the 19 5/8"x29 5/8" Actual Size.
Tower of Power hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
- ⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information

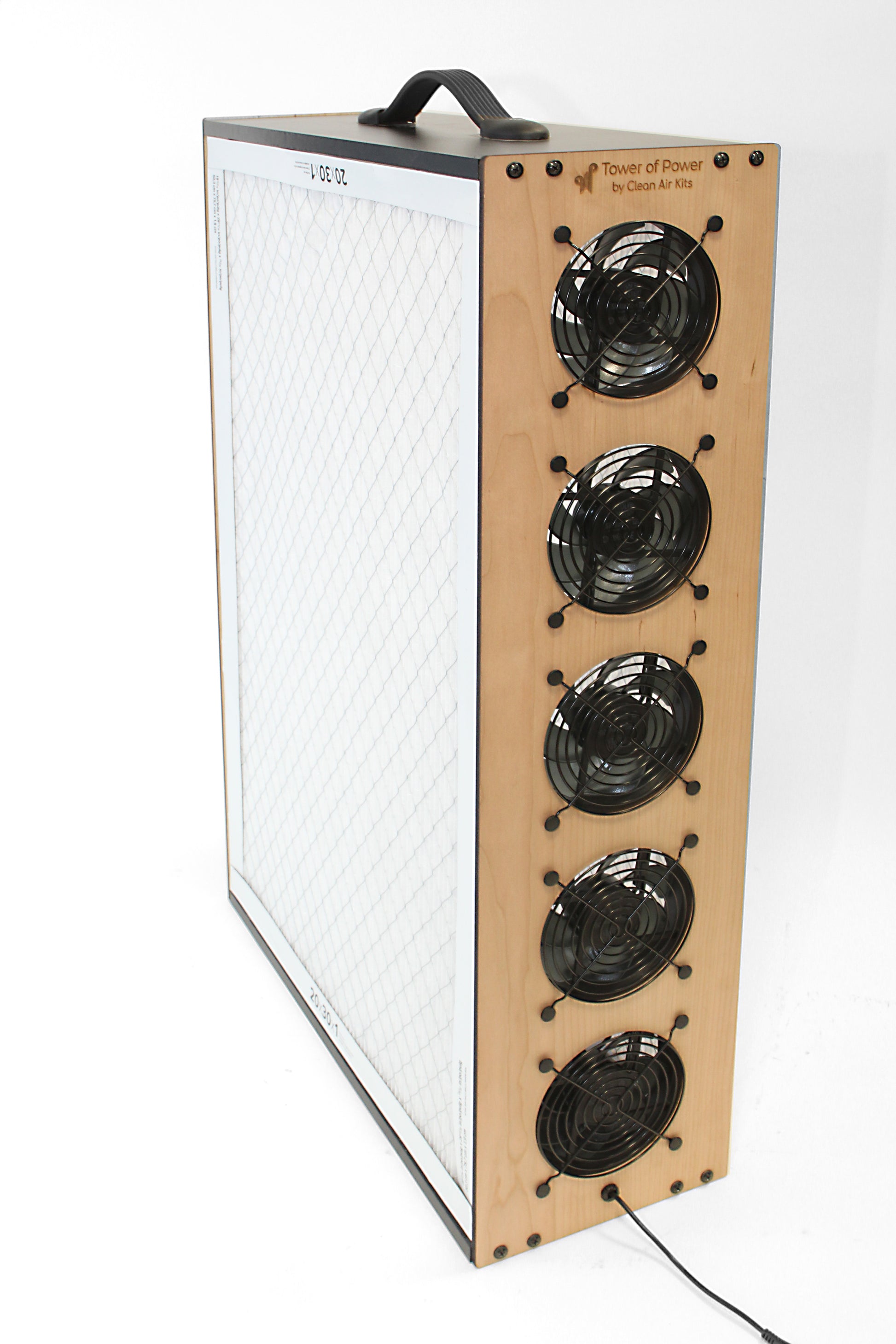

These filtering furniture pieces have sturdy 1/2" black melamine bridging laser-etched premium hardboard fan panels. Friction-fit foam seals for slip-in/out filter changes.
Tower of Power boasts six 140mm Arctic P14 and four 120mm SickleFlow pressure fans. This modest monolith boosts typical family rooms by 6-8 ACH and 9000 cb ft classrooms or large conference rooms by over 3 ACH. The Tower of Power is amazingly quiet for such high capacity: 46 dB. Attractive handle included.
To minimize shipping damage & costs, we only ship our towers & tables as unassembled flat packs at this time, filters sold separately. Assembly is straightforward with 2 fan panels screwing into the 2 melamine bridges (video here). Allow 30 minutes for assembly. If concerned, consider asking a handy friend to help with assembly -- they may enjoy it!
3M Filtrete MPR1900/2200 20x30 can be purchased separately in cheap 4-packs from
NOTE: some regions may still have a slightly larger, older Filtrete size that says 19 13/16"x29 13/16" Actual Size on side of filter. These must be scrunched to fit. Try to find newer stock with the 19 5/8"x29 5/8" Actual Size.
Tower of Power hardboard panels do not contain lead, Formaldehyde, or PFAS. However, like cooking, lasercutting can generate trace carcinogens hence:
- ⚠️WARNING: This product may contain chemicals known to the State of California to cause cancer. www.P65Warnings.ca.gov for more information
-
StyleTower of Power (Black fans)
-
Fans6 Arctic P14 + 4 CoolerMaster SickleFlow
-
Filters2 Filtrete 20x30 MPR1900+
-
Virus CADR430 cfm (estimated)
-
Occupants (40cfm per)11
-
5 ACH Coverage765 sq ft
-
Power18 W
-
Sound Power / Pressure46 / 38 dB
-
Dimensions20x31x8"
-
StyleAerating End Table (7 Black fans)
-

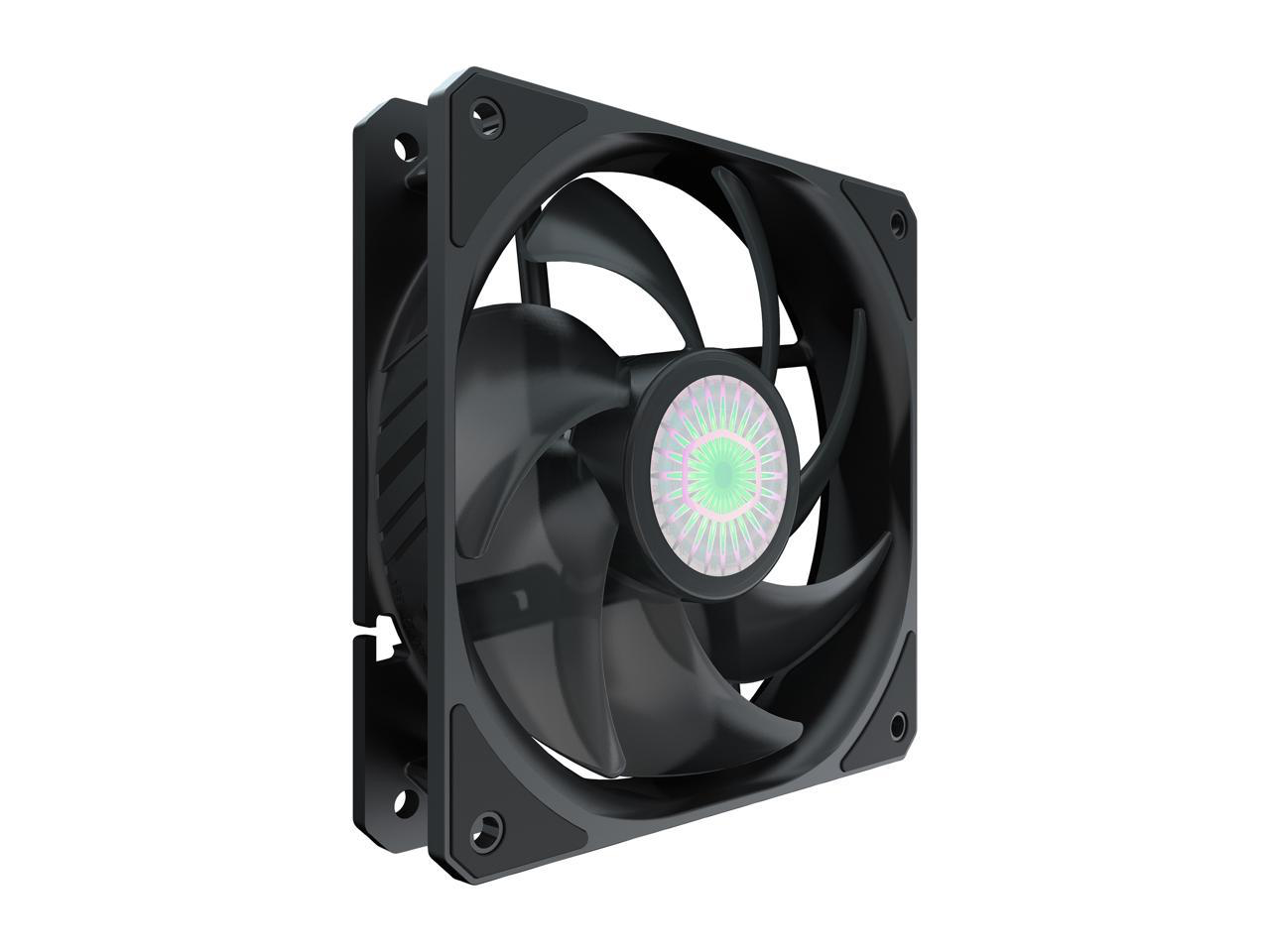

Fans7 CoolerMaster SickleFlow
-
Filters2 Filtrete 20x24x1" MPR1900+
-
Virus CADR310 cfm (525 m3/hr)
-
Occupants (40cfm per)8
-
5 ACH Coverage465 sq ft
-
Power11 W
-
Sound Power / Pressure45 / 37 dB
-
Dimensions21.5x24x8.5"
- Internal pre-tensioner cords for easy slide-out filter changes and snug fit.
- Weight: 15 lbs
- Includes UL-listed 120V AC to 12v 2A DC wall plug
Unintuitively Quiet
It's dead simple. CleanAirKits deliver top-end portable HEPA performance and they're QUIET. At that performance level, HEPA are not quiet -- people turn them down or turn them off. And we need them to be on and high-performing to passively remove covid and pollutants.The exceptionally large, unencumbered filtration area provided by dual micro pleated 3M Filtretes, and our diffuse banks of silent pressure fans make this possible. Delivering 200-500 cubic feet per minute of clean air means the boxes filter 1000-2000 faster than an adult human breathes!
Always On Safety
Since a Clean Air Kit is not loud and power hungry like a HEPA, it can always be running. And if it's always running, it's always adding a layer of protection for you and your family from smoke & airborne transmission of viruses like Flu, RSV, and Covid.
This corresponds to the pandemic HVAC best practice of continuously running furnace fan circulation with MERV13 or MERV14 filtration.
March 2022: Study of 10,441 Italian Classrooms with
varying mechanical ventilation up to 6 ACH.
-
Quiet on Full
Clean Air Kits produce 5-10x less noise than HEPA purifiers at max capacity.
-
One Speed Design
Speed controls defeat the efficacy of most HEPAs -- people turn them down to quiet where air cleaning slows. We have just one speed: silent full blast!
-
Unprecedented Energy Efficiency
Decades of competition has driven amazing silence + efficiency in PC fans. Our fan banks use 6-16W -- comparable to a LED bulb and easy to run off batteries!
Products are returnable within 30 days for a full refund less $44 filter hygiene cost and shipping. Exchanges to other models with same filter sizes are free except for shipping, otherwise $44 for new filters.
All products ship from Missouri via UPS according to an average rate per product (until backend supports live rates accurately). Due to high demand and customizations products may take up to two weeks to ship.
-
